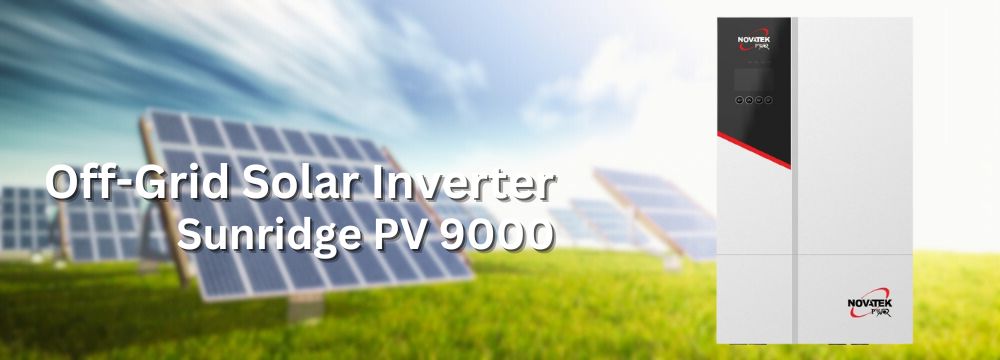

| Model | Sunridge PV9000 |
|---|
| RATED POWER | 6500VA / 6500W |
| INPUT | |
|---|
| Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| OUTPUT | |
|---|
| Voltage (VAC) | 230±5% |
| Surge Power (kVA) | 13 |
| Max. Efficiency (Battery Mode) | 93%@48VDC |
| Power Factor (PF) | 50/60Hz±0.1% |
| Switch Time (ms) | 10 (normal mode) / 10 (UPS mode) |
| Wave Form | Pure sine wave |
| Charger (PV / AC) | |
|---|
| Solar Charger Type | MPPT |
| Max PV input current / power | 28A / 9000W |
| MPPT Range@Operating Voltage (VDC) | 60~450 |
| Max PV Open Circuit Voltage (VDC) | 520 |
| Max PV Charge Current (A) | 120 |
| Max AC Charge Current (A) | 120 |
| Max. Charge Current (Only PV or AC) (A) | 120 |
| BATTERY | |
|---|
| Rated Voltage (VDC) | 48 |
| Floating Charge Voltage (VDC) | 54 |
| Overcharge Protection (VDC) | 61 |
| Battery Type | Lithium and Lead-acid |
| INTERFACE | |
|---|
| HMI | LCD |
| Interface | RS485 / USB / Dry Contact / CT / Meter |
| Monitoring | WiFi (Optional) |
| GENERAL DATA | |
|---|
| Ingress Protection | IP21 |
| Operating Temperature | -10 ~ 50 ℃ ℃ |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C to 60°C |
| Net Weight (kg) | 10.7 |
| Dimensions (W x H x D, mm) | 514 x 338 x 136.5 |
