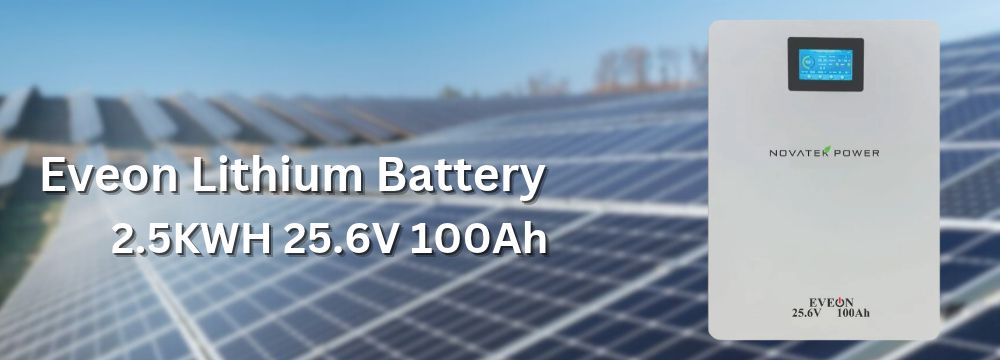

- A Grade EVE Cell
- 6000 Life Cycles 80% DOD
- Bluetooth and Wifi Monitoring
- Color Touch Screen Display
- 1C Charge / Discharge
- Warranty: Standard 5 Years
- Net Weight: 21KG
| Model | NC256100 PRO |
|---|---|
| Nominal Voltage | 25.6V |
| Battery Cell | Life PO4 |
| Battery Energy | 2.5 KWH |
| Nominal Capacity | 100AH |
| Depth of Discharge | 80% |
| Voltage Range | 22.4V-29.2V DC |
| Maximum Charge Current | 100A |
| Maximum Discharging Current | 100 A |
| Temperature of Discharge | 0°C ~ 55°C |
| Communication Port | RS485, CAN |
| Operation Humidity | 5% – 95% |
| Cycle Life | 6000 |
| Certification | CE, IEC, UN38.3, MSDS |
| Dimentions (L*W*H) | 410 x 370 x 150 mm |
| Weight | 22.4kg |
| Installation | Wall Mounted / Floor Standing |
| Parallel Units | Up to 15 |
| Adaptive Inverter | 485: PYLON, DEYE, GROWATT, VOLTRONIC, LTW, MUST, SRNE, BAYKEE, SMK, AFORE, VKING, BITTA, STONE, EPEVER, PACE CAN: PYLON, DEYE, GROWATT, SOFER, GOODWE, INVT, AFOR, SOLS, LUXPOWER, VICTRON, SOROTEC, SMA, DONNERGY, MUST, IMEON, SCHNEIDER, GENIXGREEN, INHENERGYSENERGY, LTW, SUNWAYS, STUDER, SOLAX, NC UNERGY |
