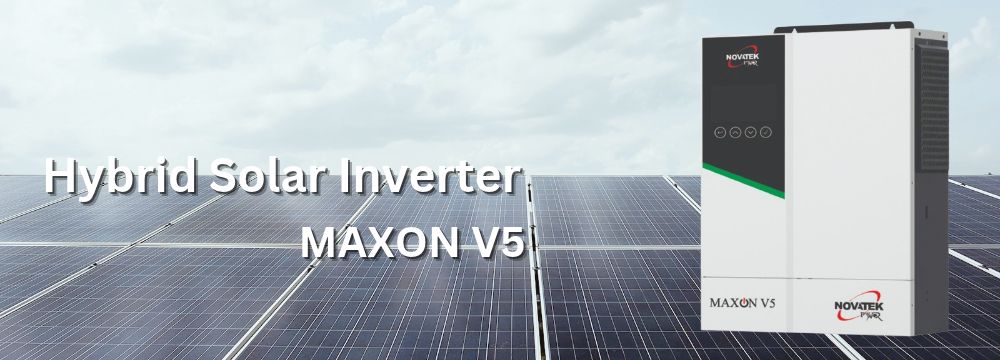

| Model | MAXON V5 |
|---|
| AC Input | |
|---|
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280 (APP/GEN mode); 170~264 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| AC Output | |
|---|
| Rated Capacity (kVA/kW) | 5 |
| Surge Power (kVA) | 10 |
| Voltage (VAC) | 208 / 220 / 230 / 240 |
| Power Factor (PF) | 1 |
| Frequency (Hz) | 50 / 60 |
| Switch Time (ms) | 10 (APP/UPS mode) / 20 (GEN mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity | 1 min@102%-120% load, 10s@ 120%-200% load |
| Max. Efficiency (Battery Mode) | 93.5%@24VDC |
| Parallel Quantity | NA |
| Charger (PV / AC) | |
|---|
| Solar Charger Type | MPPT |
| Max. PV Input Current (A) / Input Power (W) | 27 / 9000 |
| MPPT Range@Operating Voltage (VDC) | 60 – 450 |
| Max. PV Open Circuit Voltage (VDC) | 500 |
| Max. PV Charge Current (A) | 160 |
| Max. AC Charge Current (A) | 160 |
| Max. Charge Current (PV + AC) (A) | 160 |
| Battery | |
|---|
| Rated Voltage (VDC) | 24 |
| Max. Charging Current (A) | 160 |
| Max. Discharging Current (A) | 190 |
| Battery Type | Lithium / Lead-acid |
| Interface | |
|---|
| HMI | LCD |
| Interface | RS485 / CAN / RS232 |
| Monitoring | WiFi (optional / built-in / external) |
| General Data | |
|---|
| Ingress Protection | IP21 |
| Operating Temperature (°C) | -10 ~ 60 |
| Relative Humidity | 5% 95% (Non-condensing) |
| Storage Temperature (°C) | -15 ~ 60 |
| Net Weight (kg) | 8.4 |
| Dimensions (H*W*D) (mm) | 410 x 336 x 110 (without bracket) |
| Max. Operating Altitude (m) | 4000 (Derating above 2000) |
